OpenWater

../../../_images/open_far.png

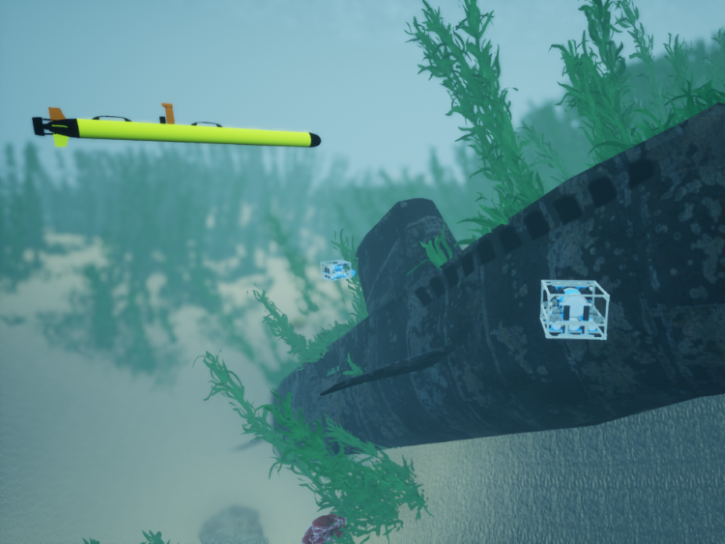

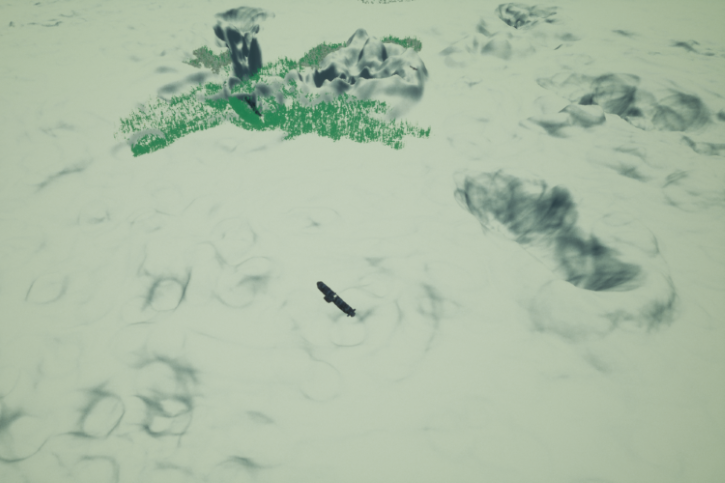

This is a large open water environment around 2km x 2km in size. There’s a number of rolling hills, sunken submarines and planes, and plant life that can be inspected.

Scenarios

../../../_images/open_close.png

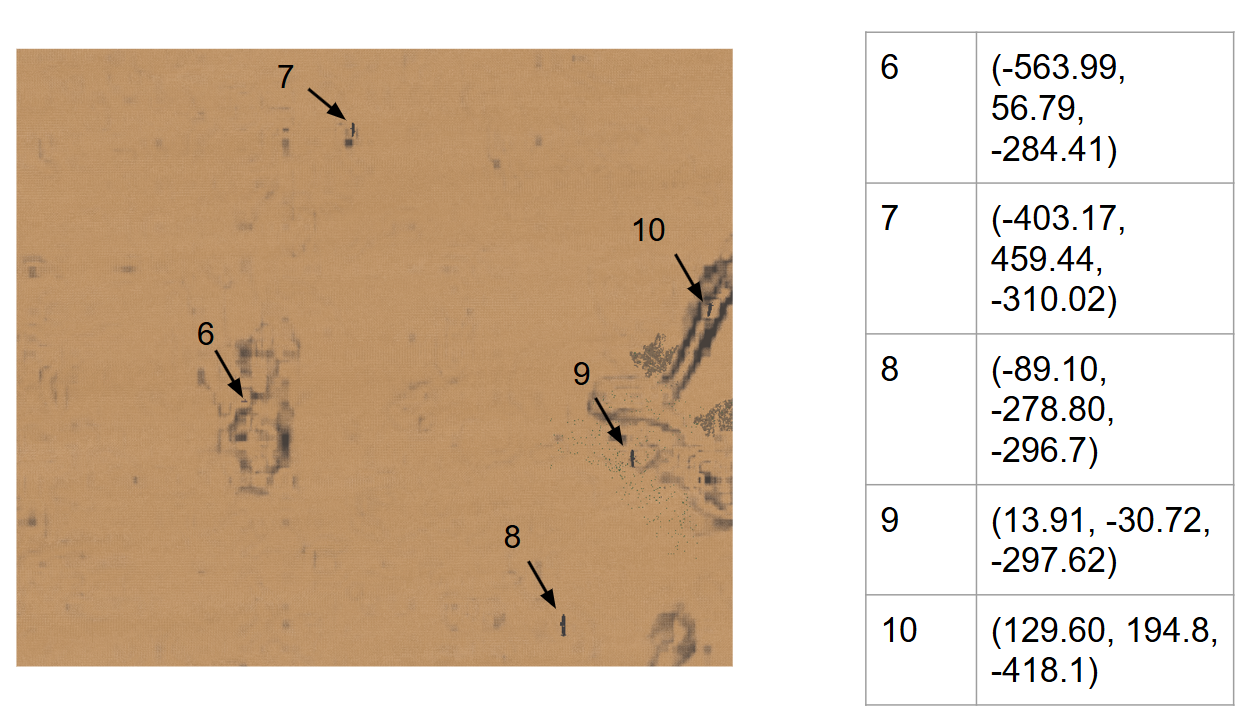

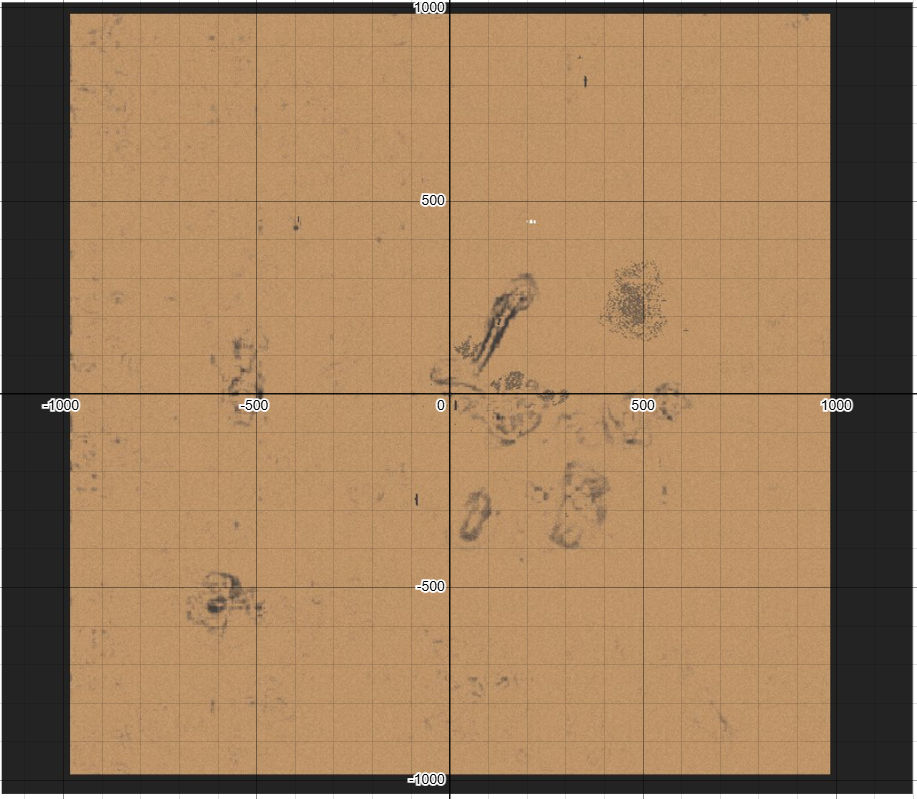

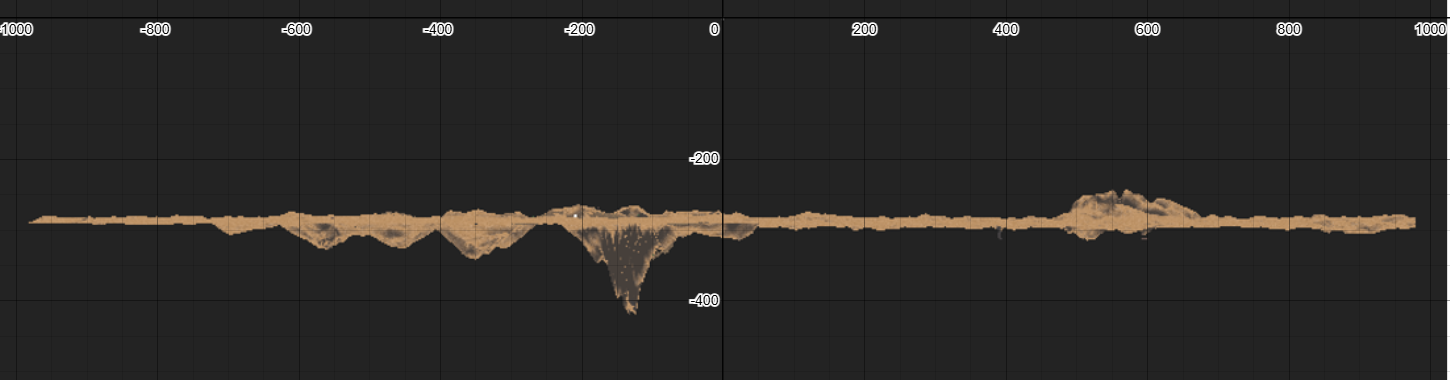

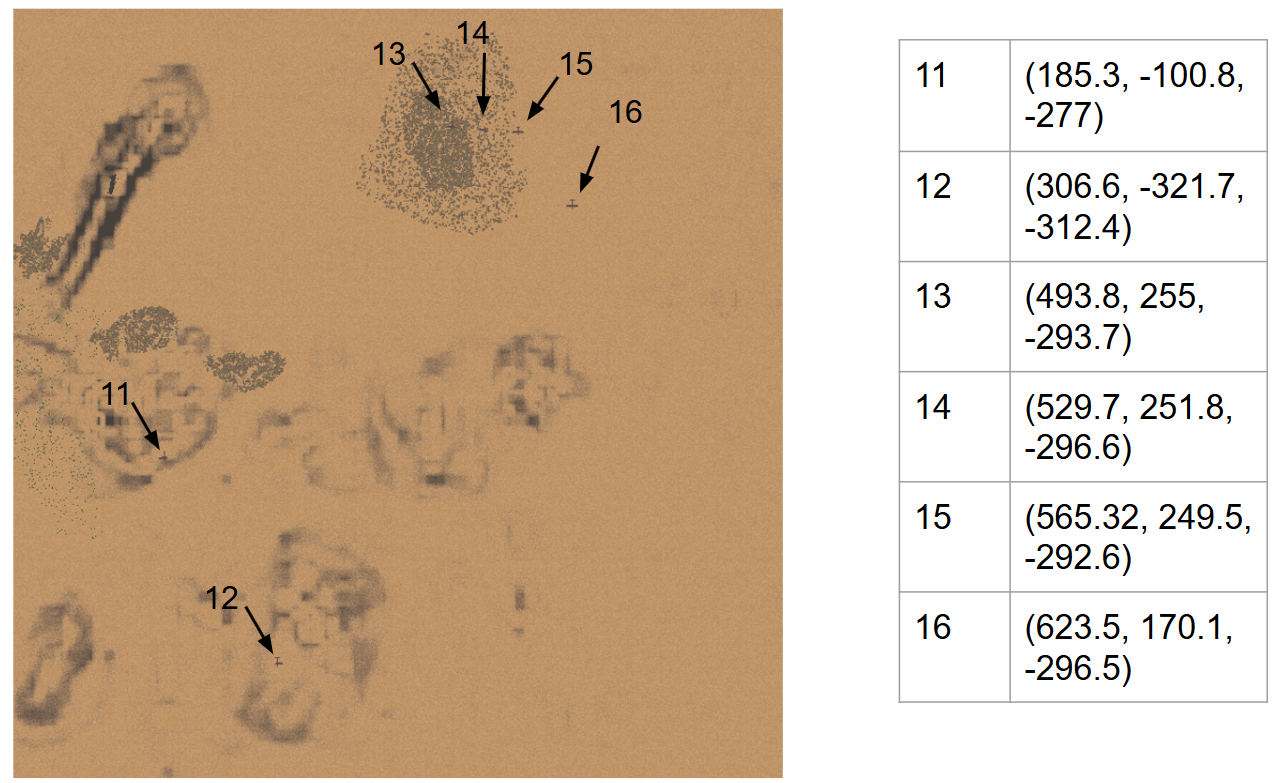

HoloOcean coordinates differ from coordinates listed within the Unreal Engine editor. The following images include coordinates from HoloOcean for the Open Water level.

../../../_images/open_coordinates.png ../../../_images/open_depth.png ../../../_images/open_landmark1.png ../../../_images/open_landmark2.png ../../../_images/open_landmark3.png

The following semantic labels are used in this level:

Folder Title

Stencil Value

RGB Value

None

0

{0, 0, 0}

Cube

1

{240, 29, 219}

Sphere

2

{29, 89, 240}

BaseShape

3

{29, 240, 89}

Landscape

4

{153, 153, 153}

WaterPlane

9

{66, 135, 245}

Rock

17

{153, 115, 9}

Seaweed

18

{75, 166, 5}

Coral

19

{235, 64, 52}

Plane

20

{176, 165, 146}

Sub

21

{146, 161, 176}

Any

255

{255, 255, 255}
