Water Appearance Commands

HoloOcean worlds have a water color command that can be called to make the water suit your needs - whatever they may be.

Water Color Command

You can use water color command while the simulation is running to change the water color with full RGB range.

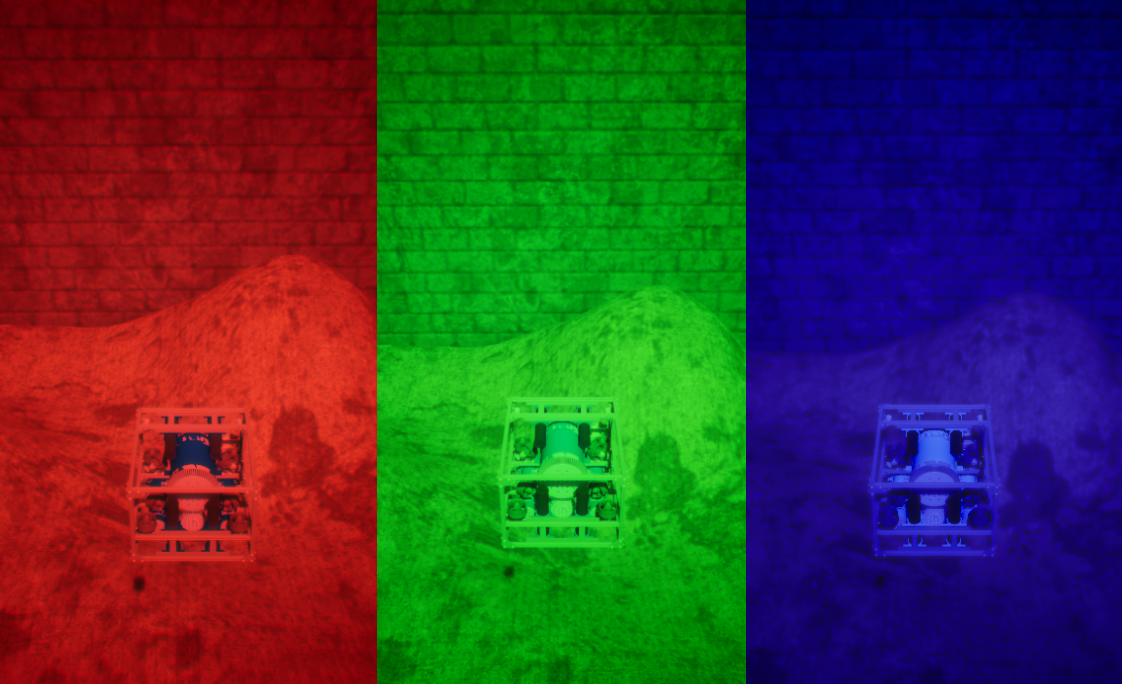

../../_images/watercolor.png

Here are a couple of example water colors that can be configured:

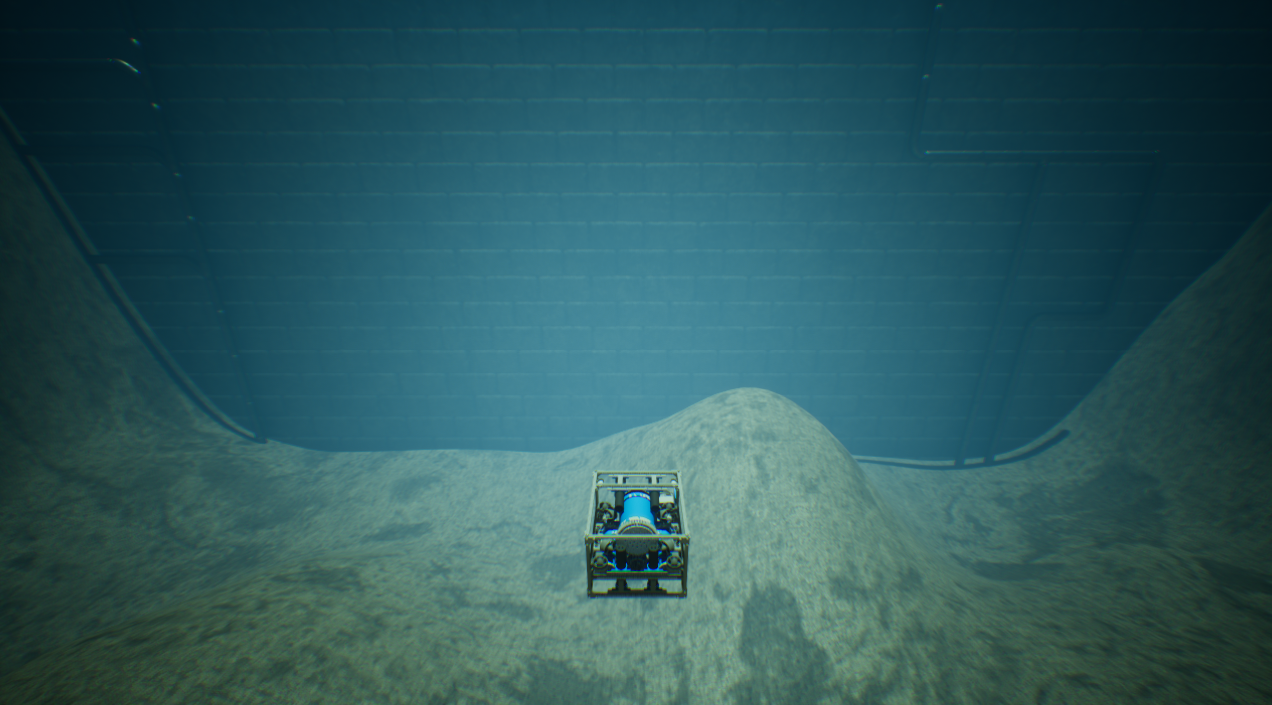

../../_images/water_color1.png

Color configuration = (0.3, 0.75, 0.6)

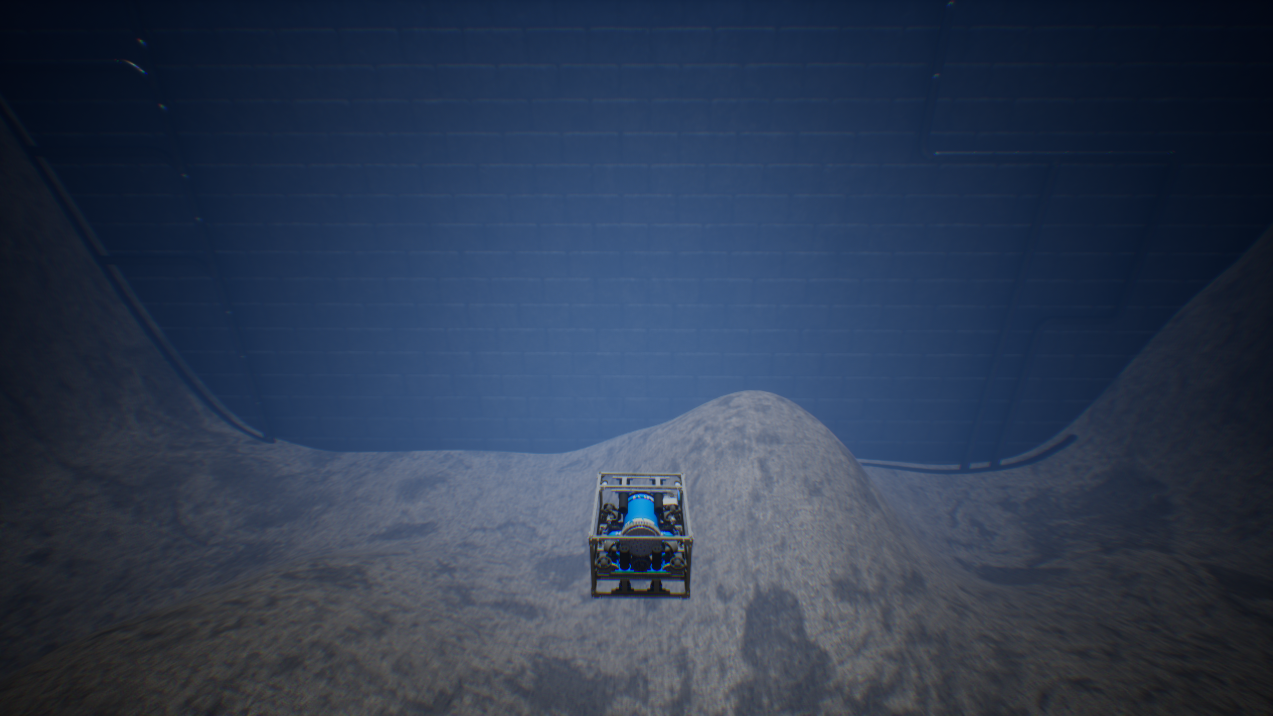

../../_images/water_color2.png

Color configuration = (0.3, 0.4, 0.5)

Programmatically

Below is an example of using the water color command to change the water to red, green, or blue:

with holoocean.make("...") as env:
      while True:
            if 'r' in pressed_keys:
                  env.water_color(1, 0, 0)
            if 'g' in pressed_keys:
                  env.water_color(0, 1, 0)
            if 'b' in pressed_keys:
                  env.water_color(0, 0, 1)

Another example to set the custom colors shown in the two pictures above:

with holoocean.make("...") as env:
      while True:
            if 'u' in pressed_keys:
                  env.water_color(0.3, 0.75, 0.6) # first picture

            if 'i' in pressed_keys:
                  env.water_color(0.3, 0.4, 0.5) # second picture

Water Fog Command

The water fog command controls underwater visibility by adjusting fog density, depth, and color.

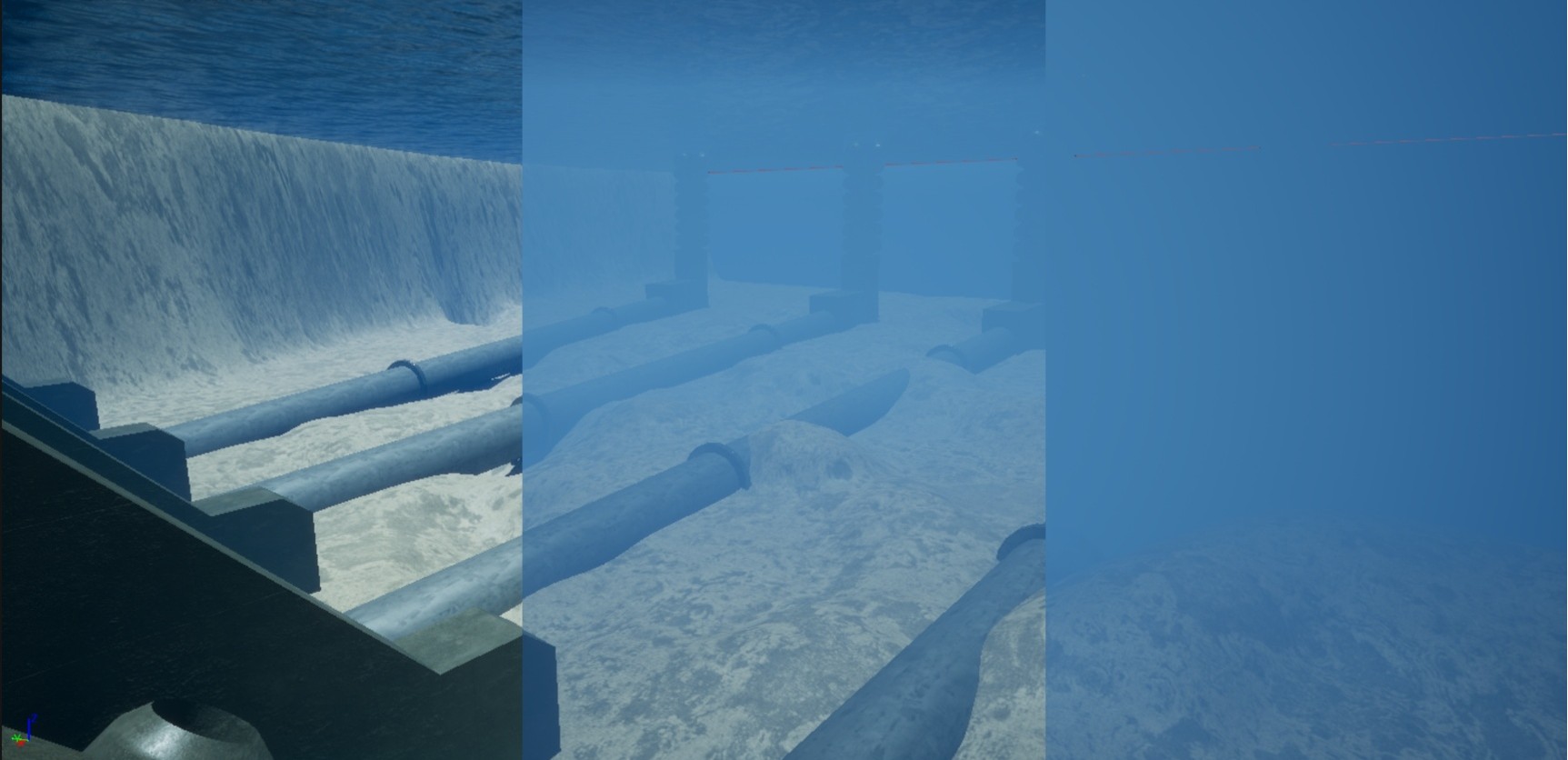

../../_images/water_fog.jpg

You can configure the following parameters:

  • fogDensity: Controls the overall thickness of the fog. Range: 0.0 10.0

  • fogDepth: Distance from the camera at which the fog effect begins. Range: 0.0 10.0 (Default = 3.0)

  • color_R: Red channel of the fog color. Range: 0.0 1.0 (Default = 0.4)

  • color_G: Green channel of the fog color. Range: 0.0 1.0 (Default = 0.6)

  • color_B: Blue channel of the fog color. Range: 0.0 1.0 (Default = 1.0)

Programmatically

Here is an example of using the water fog command to achieve the visibility level shown in the middle of the image above:

with holoocean.make("...") as env:
      while True:
            env.water_fog(0.8) # sets the fog density to 0.8

Additionally, you can modify fog depth and color.

Note

For more information on how to use these commands, please refer to the API Documentation: WaterColorCommand and WaterFogCommand.
