Adding Custom Semantic Labels

For semantic labels to be seen by HoloOcean, each asset in a level must be tagged and have rendering settings changed. These changes must be done within the Unreal Editor.

Note

HoloOcean’s semantic implementation uses Stencil Values as labels, which limits labels to values 0-255.

To assist with this, HoloOcean provides a Tagger class that can automatically apply labels based on the folder title of the objects. If you don’t need any custom labels, you can reference HoloOcean’s list of labels found at Available Semantic Labels and continue with Automatic Labels Using the Tagger.

Setting up Custom Labels

To add new labels to HoloOcean, you will need to add them to a few C++ files and choose a color to associate with your label.

Custom Labels

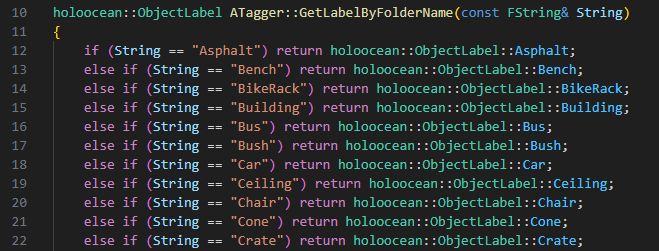

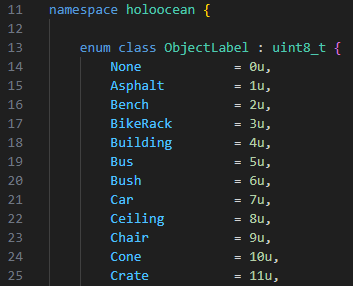

To add custom labels, add your tag names to the GetLabelByFolderName function in Tagger.cpp and to the ObjectLabel enum in ObjectLabel.h.

../../_images/tagger_label.png

Example of folder titles included in “GetLabelByFolderName”

../../_images/object_label.png

Example of numbers associated with folder titles in “ObjectLabel”

Change Label Colors

To change the colors associated with each label, you can alter the RGB values listed in engine/source/Holodeck/Utils/Public/HolooceanPallete.h.

../../_images/holoocean_pallete.png

Labeling Assets

Automatic Labels Using the Tagger

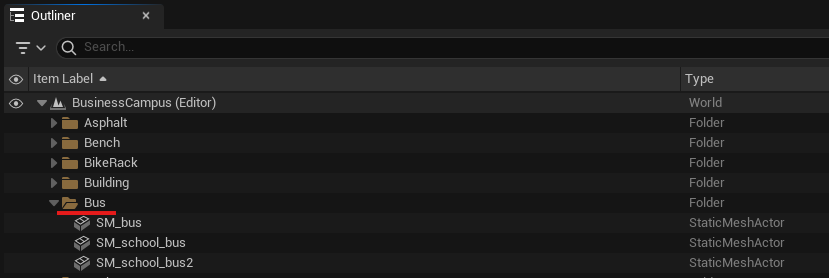

To let the Tagger automatically add labels, you need to make sure that your assets are placed in folders that coordinate with their label. For example, all bus assets placed in a folder “Bus” will be labeled with the StencilValue that coordinates with “Bus”.

../../_images/folder_structure.png

Next, enable the Tagger. From within the Unreal Editor, locate C++ Classes and navigate to Holodeck/Utils/Public/Tagger to find the Tagger c++ file.

../../_images/tagger_location.png

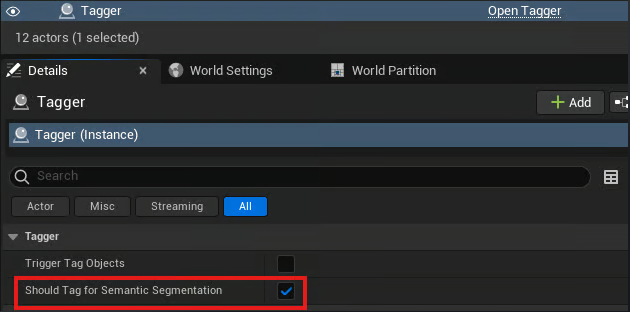

Drag the Tagger C++ file into your level. From within the Details panel, click on tha Tagger and enable “Should Tag for Semantic Segemtation”

../../_images/tagger_enabled.png

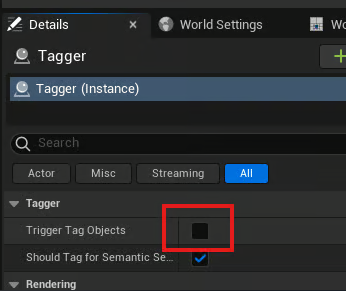

Then, click on “Trigger Tag Objects” to automatically apply labels.

../../_images/tagger_triggered.png

Manual Labels

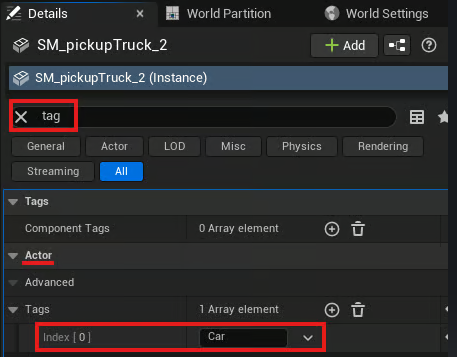

To set tags manually, in the Details panel select the asset you wish to tag. For that asset, search “tag” to find Actor tags. Add your tag to the Actor Tags list.

../../_images/manual_tag.png

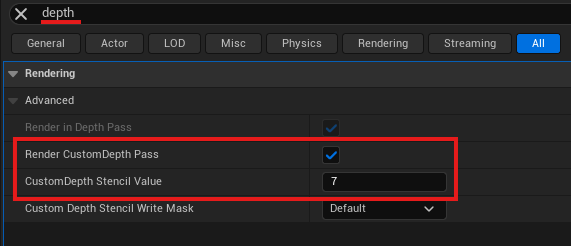

Then, search “depth” and enable “Render CustomDepth Pass” And set the “CustomDepth Stencil Value” to the value that associates with your tag. Do this for each asset you with to tag. Adittionally, enable “Render CustomDepth Pass” for the landscape to ensure it is visible in depth outputs.

../../_images/manual_stencil.png

Visualize Tags in Editor

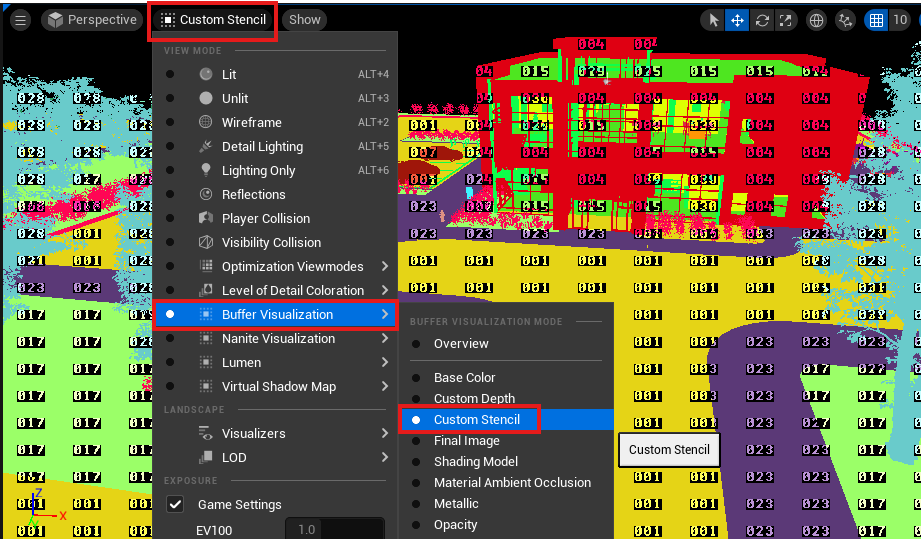

To visualize your level and make sure objects were labeled correctly, change the View Mode from “Lit” to “Custom Stencil”

../../_images/custom_stencil_view.png

Available Semantic Labels

Below is the list of all labels currently implemented in HoloOcean. Each world in the Ocean and BusinessCampus packages uses a subset of these labels, depending on the assets in that world (see BusinessCampus and the world subpages in Ocean Package ).

Folder Title

Stencil Value

RGB Value

None

0

{0, 0, 0}

Cube

1

{240, 29, 219}

Sphere

2

{29, 89, 240}

BaseShape

3

{29, 240, 89}

Landscape

4

{153, 153, 153}

GroundGrass

5

{91, 235, 52}

GroundRock

6

{196, 101, 6}

Ground

7

{194, 164, 159}

GroundPath

8

{76, 117, 252}

WaterPlane

9

{66, 135, 245}

Boat

10

{128, 64, 128}

Yacht

11

{70, 70, 70}

ContainerBoat

12

{102, 102, 156}

Concrete

13

{214, 138, 230}

Pipe

14

{73, 227, 78}

PipeCover

15

{85, 166, 3}

VentCover

16

{245, 215, 66}

Rock

17

{153, 115, 9}

Seaweed

18

{75, 166, 5}

Coral

19

{235, 64, 52}

Plane

20

{176, 165, 146}

Sub

21

{146, 161, 176}

Pier

22

{186, 76, 2}

Buoy

23

{237, 53, 7}

Trash

24

{107, 156, 137}

Grass

25

{91, 235, 52}

Asphalt

26

{79, 82, 77}

Bench

27

{212, 191, 125}

BikeRack

28

{209, 208, 203}

Building

29

{31, 240, 205}

Bus

30

{240, 220, 43}

Bush

31

{177, 247, 124}

Car

32

{224, 109, 237}

Ceiling

33

{161, 247, 233}

Chair

34

{65, 13, 255}

Cone

35

{255, 169, 10}

Crate

36

{140, 86, 0}

Desk

37

{242, 65, 224}

Dumpster

38

{0, 138, 14}

FireHydrant

39

{255, 0, 0}

Floor

40

{2, 125, 104}

GarbageCan

41

{0, 184, 92}

Pallet

42

{143, 129, 6}

ParkingGate

43

{222, 164, 177}

PatioUmbrella

44

{195, 0, 255}

Railing

45

{242, 97, 130}

SemiTruck

46

{124, 6, 138}

Sidewalk

47

{232, 232, 232}

SpeedLimitSign

48

{222, 218, 245}

StopSign

49

{250, 37, 62}

StreetLamps

50

{255, 149, 10}

Table

51

{186, 17, 169}

Tree

52

{69, 99, 46}

Wall

53

{126, 60, 250}

Unlabeled

54

{0, 0, 0}

Any

255

{255, 255, 255}
