Weather Controller

HoloOcean worlds have weather settings that can be configured, either with scenarios or programmatically in real time. Weather is purely a visual effect; it does not impact vehicle movement or sensor data input.

Weather Options

Type

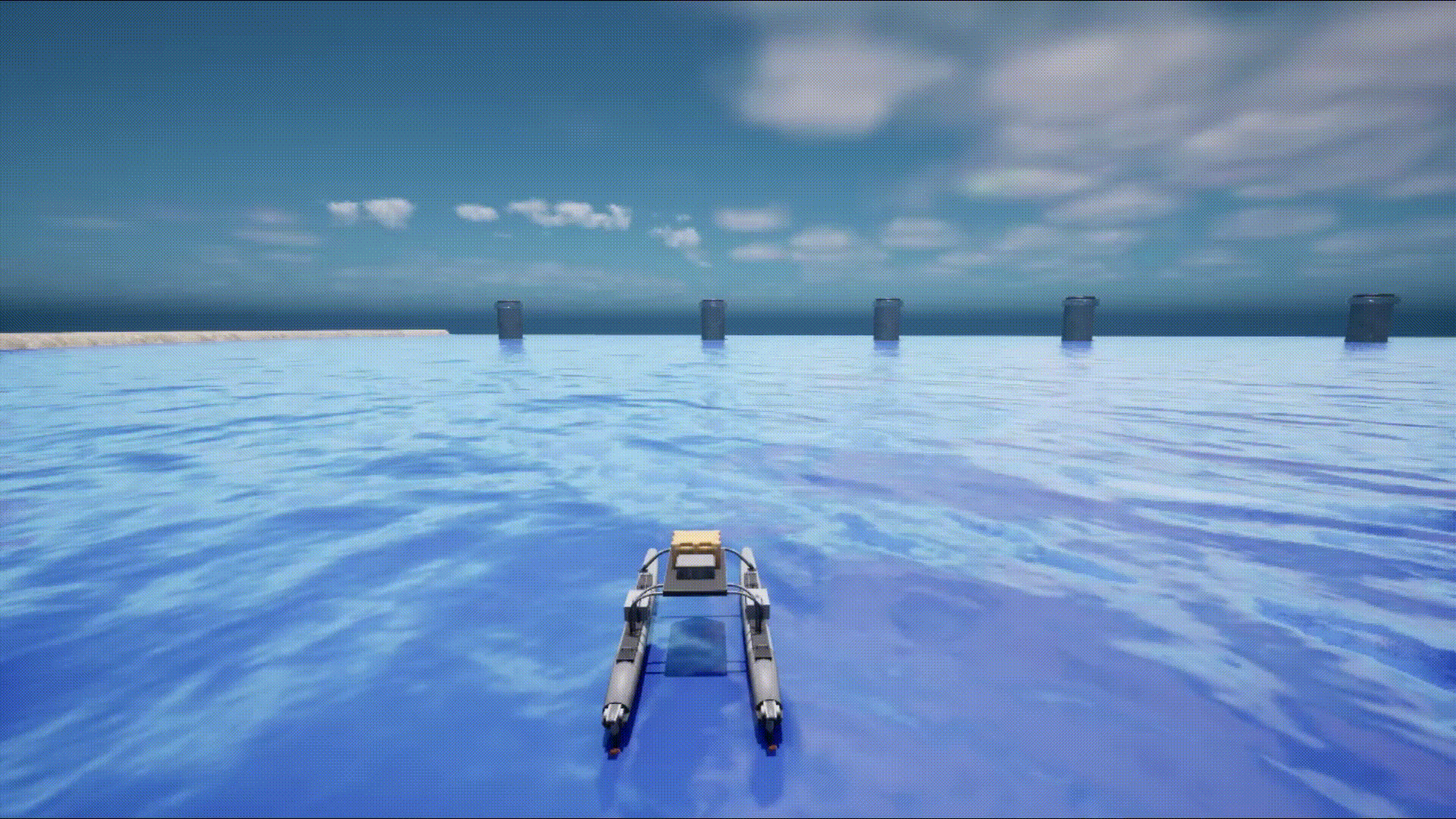

../../_images/weather.gif

HoloOcean worlds have three possible types of weather: 0 - sunny, 1 - cloudy, and 2 - rainy.

In a scenario

config = {
   "name": "weather_test",
   ...
   "weather": {
      "type": 0
   }
}

Programmatically

with holoocean.make("...") as env:
   while True:
      env.change_weather(0)
      ...
      env.tick()

Rain parameters

In rainy weather, you can programmatically customize the rain’s velocity and spawn rate (the number of rain particles). This feature is only available during simulation and not through scenario configuration.

../../_images/rain_spawn_rate.gif

Velocity

Rain velocity is defined by three components: x, y, and z, corresponding to movement along each axis. These can be used to simulate wind:

  • x component: Controls horizontal tilt (left/right) relative to the world frame.

  • y component: Controls horizontal tilt (forward/backward) relative to the world frame.

  • z component: Controls vertical speed. This value must be negative for the rain to fall downward. A positive z will make the rain rise, effectively making it invisible around the vehicle.

A good starting point for mildly tilted rain is:

velocity = (0, 400, -1000)

Spawn Rate

This parameter defines how many rain particles are generated. Typical values for realistic rain effects range from 1000 to 4000. You can adjust this to simulate light or heavy rain as needed.

Warning

Setting the spawn rate too high (e.g., in the millions) can severely affect performance or crash the simulation.

Usage

To set rain parameters, use the following command:

set_rain_parameters(vel_x, vel_y, vel_z, spawn_rate)

If not explicitly set, the default rain settings are:

velocity = (0, 300, -1000)
spawn_rate = 3000

Programmatically

with holoocean.make("...") as env:
   while True:
      env.change_weather(2)  # Set weather to rain here or in the config
      env.set_rain_parameters(0,400,-1000, 2000)  # Custom rain behavior
      ...
      env.tick()

Note

For more information on how to use these commands, please refer to the API Documentation: ChangeWeatherCommand and SetRainParametersCommand.
