FixedWing

Warning

This agent is in active development, and any functionality or features are prototypical in nature and subject to change. At this time we cannot guarantee stable HoloOcean performance while using this agent.

../../_images/fixed-wing.png

Description

This custom agent is a fixed-wing, vertical takeoff and landing (VTOL) aircraft. It is being developed to model a specific real-world vehicle.

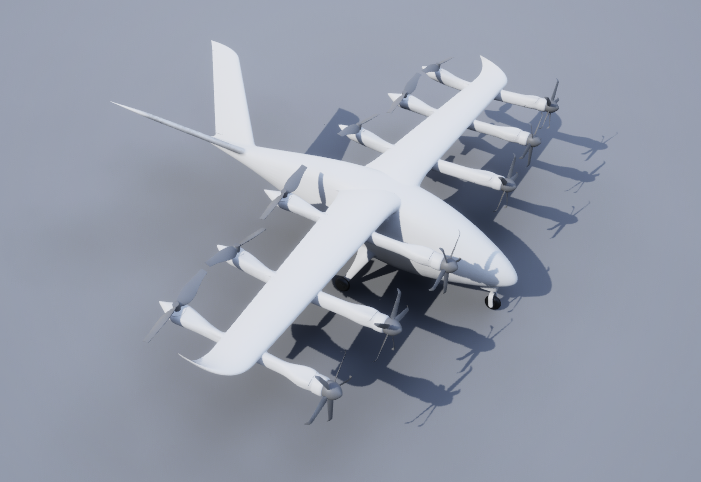

Our implementation has some key differences from the image shown. First, the actual agent has only 8 propellors (4 vertical and 4 horizontal) instead of 12. Second, while the asset shows the front row of horizontal prepellors pointing directly forward, on the agent they are angled outward from the vehicle in the XY plane by 45 degrees.

See FixedWing.

Control Schemes

Propellors (``0``)

An 8-length floating point vector used to specify the thrust force from each propellor. The order for specifying the propellors in the command is as follows: [Vertical Front Starboard, Vertical Front Port, Vertical Back Port, Vertical Back Starboard, Angled Front Starboard, Angled Front Port, Angled Back Port, Angled Back Starboard]

PD Controller (``1``)

A 6-length floating point vector of desired position in the global frame and roll, pitch, and yaw. A basic PD controller has been implementing to move the vehicle to that position and orientation using the needed forces and torques.

Custom Dynamics (``2``)

A 6-length floating point vector of linear and angular accelerations in the global frame. This is to be used for implementing custom dynamics. Besides collisions, all other forces and torques (including gravity, buoyancy, and damping) have been disabled in the simulator to allow for a clean slate for custom dynamics.

Sockets

This agent does not have any sockets yet.
